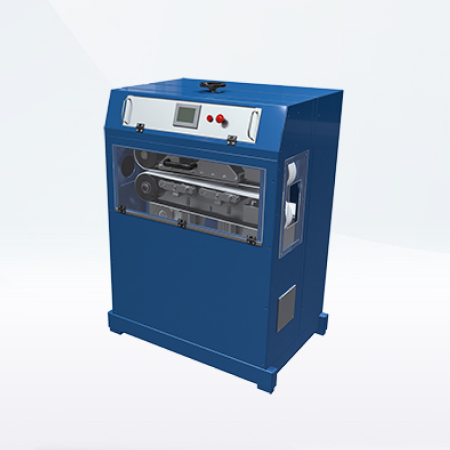

Dripline Haul Off

Metzer’s belt-type haul-off unit is engineered for precision and reliability in dripline production lines. Designed specifically for dripper pipe manufacturing, it delivers consistent traction and stability at high speeds. The system features robust welded steel construction, pneumatic belt tensioning, and a brushless servomotor drive for accurate, vibration-free operation. With pneumatic actuation for easy belt opening/closing and an integrated control panel, this haul-off ensures smooth and dependable pipe handling in continuous extrusion processes.

Technical Specifications:

Belt Contact Length | 440 mm

Maximum Speed  | 300 m/min

Traction Force  | 365 N

Center Height  | 1000 mm (adjustable ±25 mm)

Motor Power  |1.5 kW

Maximum Pipe Outer Diameter  | 32 mm

Power Supply |  3 Phase + N, 400V, 10A, 50/60Hz

Compressed Air Requirement  | 6 bar (clean, dry, non-lubricated)

Standard Working Direction  |  Right to left
