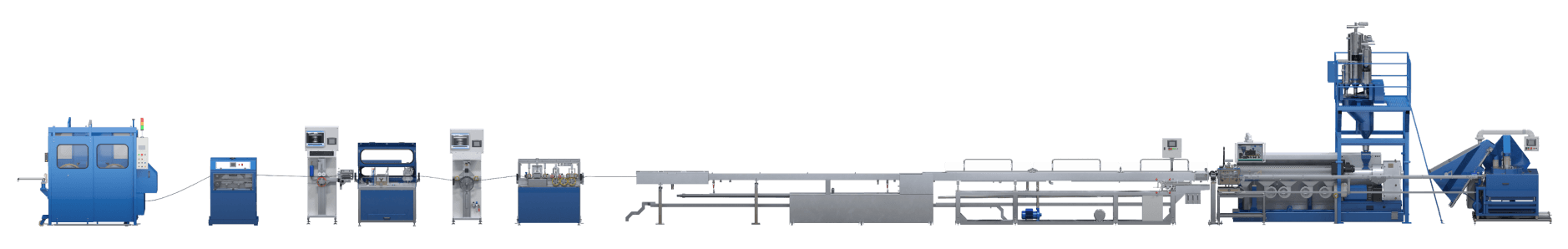

HYDO Series
Hybrid line for production of driplines with flat or cylindrical drippers
This innovative hybrid series is uniquely designed by Metzer for the
production of driplines with both flat and cylindrical drippers (PC and
non-PC). Its creative design provides an unrivaled flexibility, as it allows
production of the widest product range in the market, enabling the
manufacturer to answer almost any market demand. Whether it is a
robust cylindrical PC dripper or an advanced light-weight flat dripper –
this line can cope with the challenge.
Technical data:
Dripper type | Flat/Cylindrical
Max line speed | 200/120 m/min
Insertion rate | 1000/600 dripprers/min
Pipe diameter range | 12-25 mm
Wall thickness range | 0.15-1.2 mm
Drilling rate | 1000/600 holes/min
Minimum dripper spacing | 10 cm
Extruder output | 320 Kg/hr
Winder type | Automatic Coiler & accumulator + Semi-automatic coiler
Features
- Flexibility to produce all wall thicknesses and diameters in range
- Can insert all of Mezer’s flat/cylindrical drippers
- Changing between flat and cylindrical drippers types takes one day’s work
- Optional configuration of dripper spacing in groups of drippers (ideal for orchards and citrus)
