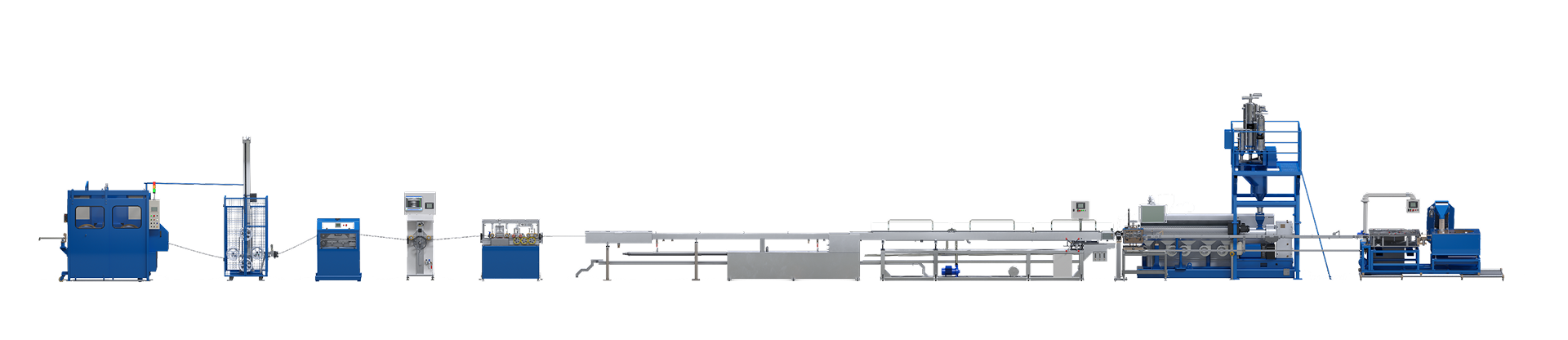

NEXO Series
High-speed line for manufacturing driplines with flat drippers
This reliable and efficient high-speed production line is Metzer’s flagship
product, with a proven track record and global installations.
The NEXO series incorporates state-of-the-art insertion, visual-inspection
and drilling systems, allowing dripline producers to optimize their
production output with higher product quality.
Technical data:
Dripper type |Flat (PC & Non-PC)
Max line speed | 300 m/min
Insertion rate | 1600 dripprers/min
Pipe diameter range | 12-25mm
Wall thickness range | 0.15-1.2 mm
Drilling rate | 1600 holes/min
Minimum dripper spacing | 10cm
Extruder output | 200 Kg/hr
Winder type | Automatic + Accumulator
Features
- Flexibility to produce all wall thicknesses and pipe diameters in range
- Can insert all Metzer flat dripper models by replacement of tooling sets (within a two hour set-up time)
- Customizable to customer’s preferred extruder brand
- Choice of extruder positioning; parallel or at 90ƕ to production-line
- Adaptable to customer’s drippers
- Optional configuration of dripper-spacing in groups of drippers (ideal for orchards and citrus)
