SPIR Series
Legacy. Well-trusted. Professional
This series enables dripline producers to answer the steady market
demand for the well-trusted and well-proven cylindrical drippers.

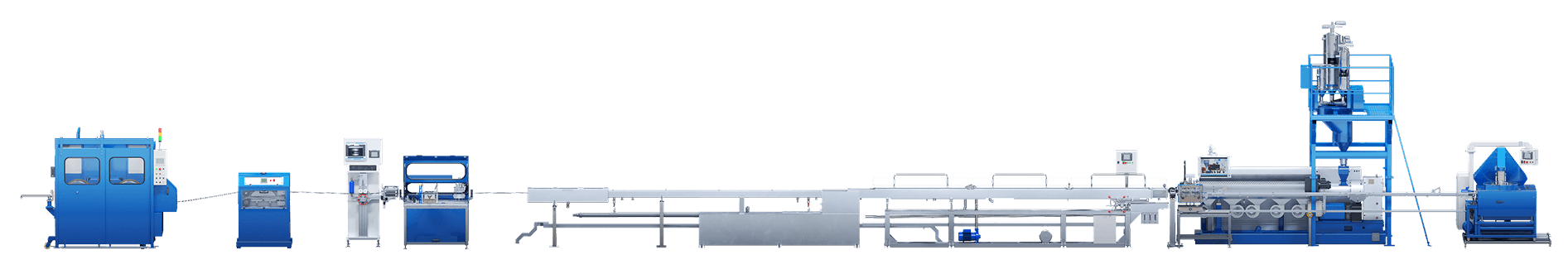

Line design includes a 3-layer cross-head for production of multilayer
driplines and incorporation of various applications and configurations.
Technical data:
Dripper type | Cylindrical
Max line speed | 120 m/min
Insertion rate | 600 dripprers/min
Pipe diameter range | 12-25mm
Wall thickness range | 0.6-1.2 mm
Drilling rate | 600 holes/min
Minimum dripper spacing | 10 cm
Extruder output | 320 Kg/hr
Winder type | Semi-automatic
Features
- Production of multilayer pipe with ABA/ABC, configurations
- Incorporation of applicative layers such as: Anti-bectetial, Rootguard®, recycled raw-material
- Flexibility to produce all wall thicknesses and pipe diameters in range
- Adaptable to customer’s preferred extruder brand
- Choice of extruder positioning; parallel or at 90° to production-line
- Adaptable to customer’s cylindrical dripper
- Optional configuration of dripper-spacing in groups of drippers (ideal for orchards and citrus)
