Technical Data

Dripper flow rates: 0.8 / 1.2 / 1.6 / 2.1 / 3.4 l/h

Shut down pressure: 1.4 m

Dripline diameters: 16 / 17 / 20 / 22 / 25 mm Dripline wall thickness: 0.4 – 1.2 mm


Features

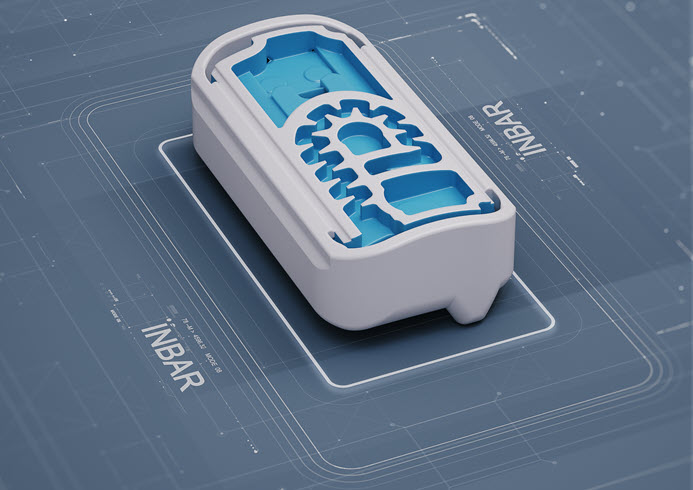

  • Multi-purpose flat dripper for high-end crops and advanced agriculture
  • Wide range of working pressures for various topographies
  • Shuts down automatically at pressure less than 1.4 m (0.14 bar)
  • Non-drain system: The dripline remains full of water during irrigation intervals, ensuring immediate and uniform irrigation along the dripline.
  • Accurate pressure-regulating labyrinth mechanism
  • Wide water passage along the labyrinth
  • Suitable for different water sources
  • Long-lasting silicon diaphragm
  • Durable under harsh field conditions and chemical applications

Applications

» Greenhouses » Row crops » Pulse irrigation » Vegetables

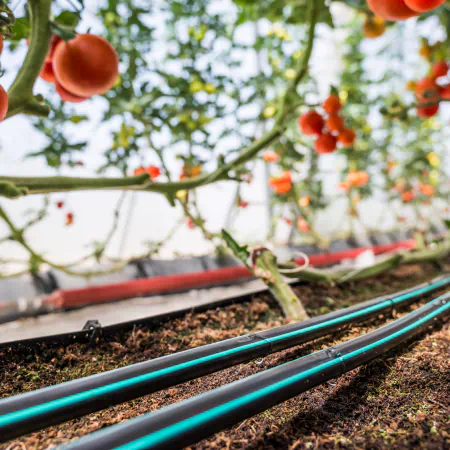

  • Greenhouse

  • Row crops

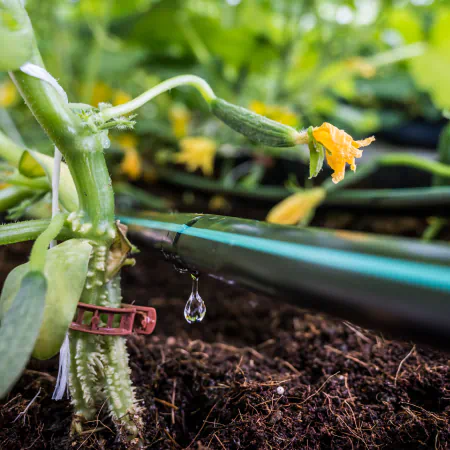

drip irrigation

Unique Non-Drain System

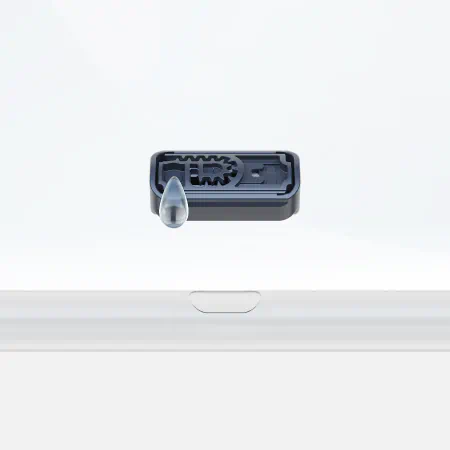

INBAR Dripline

Model

Inside Diameter (mm)

 Wall Thickness (mm) Min. Working Pressure (bar)  Max. Working Pressure (bar)  Kd
 INBAR 16 15.8 0.4 0.8 2.0  0.2
15.2 0.6 2.5
13.8 0.9-1 3.5 0.27
INBAR 17 15.8 0.6 0.8 2.5 0.2
15.0 0.9-1 3.5
INBAR 20 17.4 0.9-1.2 0.8 3.5-4.3 0.1
 INBAR 22 21.0 0.4-1.0 0.8  3.5 0.08
 INBAR 25 24.7  0.4-1.0 0.8  3.5 0.05

INBAR 16

Max. Lateral Length (ID 15.2 mm, WT 0.6 mm, Inlet Pressure 2.5 (bar)

Nominal Flow Rate (l/h)

Spacing between Drippers (m)

0.20 0.30 0.40 0.50 0.60 0.75 1.00
0.8 206 275 336 391 442 512 619
1.2 171 228 279 325 367 426 515
1.6 142 189 232 270 305 354 429
2.1 119 159 194 227 256 297 360
3.4 87 116 142 166 188 219 265

INBAR 17

Max. Lateral Length (ID 15.8 mm, WT 0.6 mm, Inlet Pressure 2.5 bar)

Nominal Flow Rate (l/h)

Spacing between Drippers (m)

0.20 0.30 0.40 0.50 0.60 0.75 1.00
0.8 219 293 358 417 471 546 661
1.2 181 243 297 346 391 455 550
1.6 150 201 247 288 325 378 458
2.1 126 169 207 242 273 318 385
3.4 92 124 152 177 201 233 283

INBAR 20

Max. Lateral Length (ID 17.4 mm, WT 1.0 mm, Inlet Pressure 2.5 bar)

Nominal Flow Rate (l/h)

Spacing between Drippers (m)

0.20 0.30 0.40 0.50 0.60 0.75 1.00
0.8 278 364 439 508 571 659 793
1.2 231 302 365 422 475 549 660
1.6 192 251 304 351 395 456 549
2.1 161 211 255 295 332 384 462
3.4 118 155 187 217 244 282 340

INBAR 25

Max. Lateral Length (I.D 24.7 mm, W.T 1.0 mm, Inlet Pressure 2.5 bar)

Nominal Flow Rate (l/h)

Spacing between Drippers (m)

0.20 0.30 0.40 0.50 0.60 0.75 1.00
0.8 524 678 815 940 1055 1215 1460
1.2 435 564 678 782 878 1011 1215
1.6 361 469 564 650 730 842 1011
2.1 303 394 474 456 614 708 850
3.4 222 289 348 401 451 520 625

» On flat ground » Representative tables only. For further information, please refer to the Irrimetzer software.

Model

Wall Thickness (mm) Lateral Length (m)  Number of Coils/Drums*
per Container
Coil/Drum 20′ 40′ 40’HC

INBAR 16

0.4 800 Narrow 360 720 880
0.6

<20cm spacing – 600 Wide Other spacing – 800 Wide

240

480 580
0.9  500 Wide
1.15  400 Coil 150 300 375
INBAR 17 0.6 20cm spacing –
600 Wide Other spacing – 800 Wide
240 480 580
0.9 500 Wide 240 480 580
1.15 400 Coil 170 340 375
INBAR 20 0.9 400 Coil 125 150 180
1.2 300 Coil 140 280 300
INBAR 22 1.0 350 Wide 240 480 580
INBAR 25 1.0 300 Wide 240 480 580

* Number of drums per pallet: Wide – 24, Narrow – 36
