LeachFlow™ L

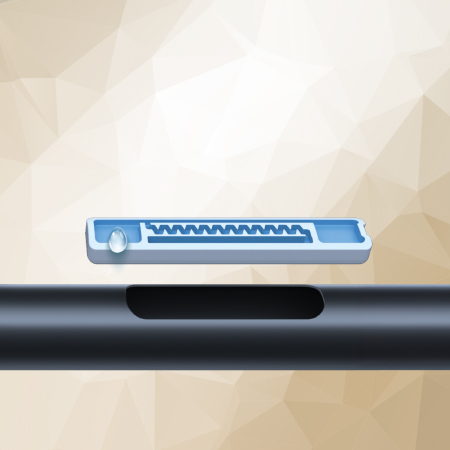

Designed for heap leaching applications, LeachFlow™ L is a turbulant dripline engineered for reliable solution distribution on flat or moderately sloped pads. Its wide inlet filtration and robust flow path provide high clog resistance, ensuring continuous and stable discharge even under challenging solution quality
Specifications
Dripline diameters | 16mm, 20mm
Dripline wall thickness | 0.9-1.2
Drippers spacing | 10 cm and up
Dripper’s waterflow | 0.8/1.2/1.6/2/3/4/6 L/hr
Features & Benefits
- Most applicable for copper leaching
- High clogging resistance due to wide water passages along the primary labyrinth
- Short and wide self-cleaning labyrinth with turbulent flow to prevent particle settling
- Highly resistant to UV exposure and common agricultural fertilizers
- Very low CV (Coefficient of Variation) for consistent performance
- Largest effective filtration area in its category for superior clogging prevention
- 100% of drippers inspected by an advanced AI-driven quality assurance system
- Lin driplines can be manufactured with an additional color layer according to the client’s request. Available colors include brown, purple, white, and more
- Compliant with ISO 9261 standards for quality and performance
