LeachFlow™ R
Heap Leaching for Gold & Silver mines

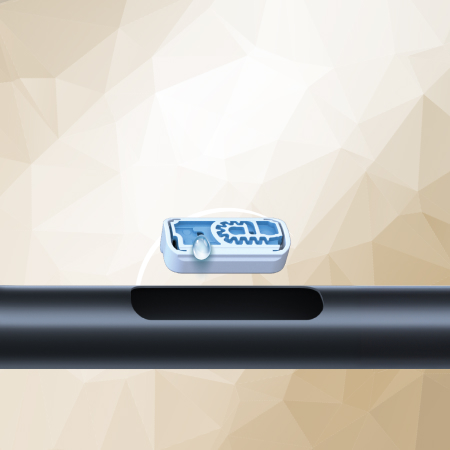

Designed for heap leaching operations in gold and silver mining, LeachFlow™ R is an integral compact pressure-compensated dripper engineered for uniform leaching application under demanding field conditions. Its high clog-resistance flow path and advanced pressure-regulating mechanism ensure consistent discharge across long laterals and sloped pads. The system maintains stable and reliable flow distribution from the top of the heap to the lowest elevation, even under challenging solution quality and variable hydraulic conditions.
Specifications
Dripline diameters | 16mm, 20mm, 22mm
Dripline wall thickness | 1.0mm-1.25mm
Drippers spacing | 10 cm and up
Dripper’s waterflow | 1/1.2/1.6/2.1/3.4 L/hr
Compensation range | 8-40 m
Applicable
Features & Benefits
- Higley accurate pressure-compensating self- flushing labyrinth mechanism
- Wide range of working pressures for various topographies and heap slopes
- Highly resistant to UV and chemical abrasions
- Very low CV
- Wide water passages along the primary labyrinth
- Has the largest filtration area in its category
- The thickest silicone diaphragm in its dripper’s category ensures accuracy and high-pressure regulating performance for a long lifetime
- 100% of drippers inspected by online AI quality assurance system
- Wide self-cleaning labyrinth with turbulent flow to prevent particle settling
