LeachFlow™ V
Heap Leaching for Gold & Silver mines

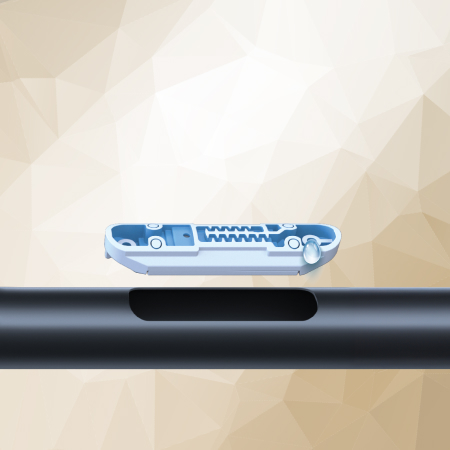

LeachFlow™ V is an integral ‘Heavy duty’ pressure-compensated dripline engineered for uniform leaching application under demanding field conditions. It is designed for heap leaching operations in gold and silver mines featuring high clog-resistance flow path and advanced pressure-regulating mechanism which ensures consistent discharge across long laterals and sloped pads. The system maintains stable and reliable flow distribution from the top of the heap to the lowest elevation, even under challenging water quality and variable hydraulic conditions.
Technical data
Dripline diameters | 16mm, 20mm
Dripline wall thickness | 0.90mm-1.25mm
Drippers spacing | 10cm and up
Dripper’s waterflow | 1/1.2/1.6/2.1/3.5 L/hr
Compensation range | 5-40m
Heap leaching applications: Gold, Silver
Features & Benefits
- Advanced self-flushing mechanism at the beginning and at the end of each irrigation cycle
- Unique and accurate pressure-compensating labyrinth mechanism
- Wide self-cleaning labyrinth with turbulent flow to prevent particle settling
- Wide range of working pressures for various Heap slopes
- Very low CV
- Highly durable and reliable structure designed for harsh water conditions
- The largest effective filtration area in the market
- The thickest silicone diaphragm in its dripper’s category ensures accuracy and high-pressure regulating
- performance for a long lifetime
- 100% of drippers inspected by online AI quality assurance system
- Compatible with and approved by ISO9261 standard
