LeachFlow™ C

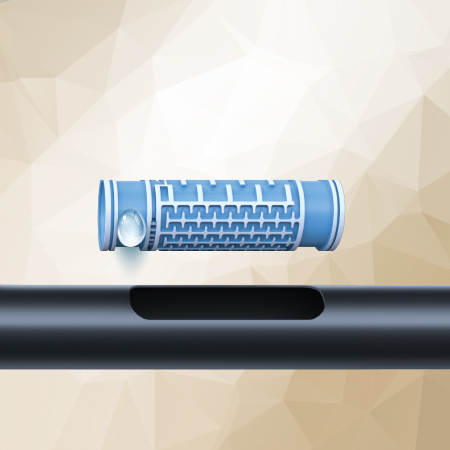

Engineered for demanding heap leaching applications, LeachFlow™ C is a turbulant dripline featuring a robust cylindrical emitter design for superior clog resistance. Its large inlet filtration area and wide flow passages ensure continuous and stable discharge even under severe solution quality. Designed withe 2 or 4 outlets for reliable performance in aggressive mining conditions, LeachFlow™ C delivers durable and efficient solution distribution across engineered leach pads.
Specifications:
Flow rates (l/hr) | 1.4, 2.3,3.1,4.3,10
Diameter (mm) |16
Drippers spacing | 10cm and up
Wall thickness Range | 0.9, 1.0, 1.1, 1.15, 1.2
Inlets | 2
Outlets | 2 or 4
Features & Benefits
- Most applicable for copper leaching
- Long Turbulent Labyrinth with wide water passages
- Double inlet filter – ensures always water intake from the upper, cleaner, part of the flow
- Highly resistant to UV and and chemical abrasions
- 100% of drippers are inspected by on-line AI quality assurance system
- Highly clog-resistant cylindrical inlet filter – ensures clean and continuous flow
- Very low CV
